Detailed description

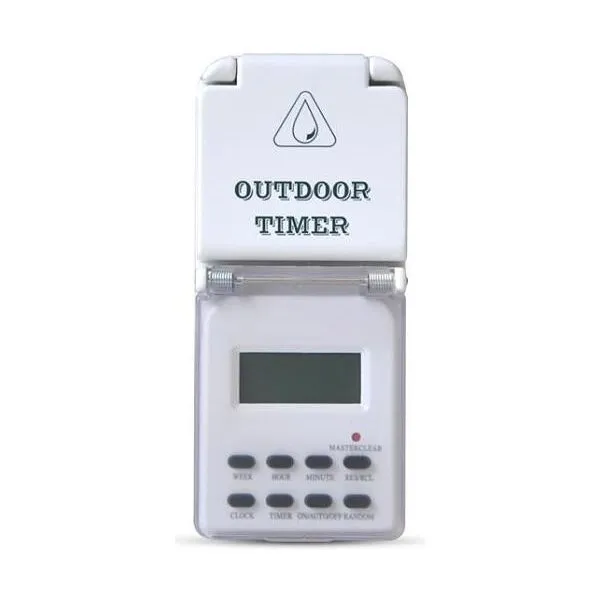

With this digital switch socket you can switch decorative lighting, household appliances etc. off and on at set times. The switching clock has a daily and weekly switching cycle, very simple operation and built-in SUMMERTIME and RANDOM functions. A choice of 16 preset groups of days of the week. This switching clock is designed for outdoor use and has a degree of protection IP44 (protection against splashing water). They can be used for programmed watering, automatic control of outdoor lighting or other appliances in indoor and outdoor environments. The maximum switching power of the time switch is 3680W.
Even in your absence, this switching clock can repeatedly switch on and off, for example, a heater, lamp or radio. Programming is very simple, so the clock is suitable even for people with a negative relationship to technology.

Other examples of use: programmed watering of the garden, outdoor lighting, heating in the morning for getting up, limiting viewing time TV time for the children, heating the garage before you would otherwise have to get into a "frozen car" and also not be able to start it properly because of the cold. A simple protection against burglars, when they think you are home, they can switch on a lamp or radio in your absence, giving the impression of a person being in the apartment or house.

Specifications

• Possibility of setting different programs for each day of the week
• Total of 8 programs
• It is possible to use 16 preset combinations of days or groups of days (one combination only counts as one program!), i.e. program valid e.g. for weekdays only or for weekends only or for Friday to Sunday , Monday to Saturday etc.
• SUMMERTIME function for easy change from daylight saving time to standard time and vice versa
• RANDOM function for switching at random intervals (switching e.g. lights when absent - protection against thieves)
• Selectable time display format 12/24
• Built-in battery backup to power the clock keeps the set programs in memory even in the event of a mains power failure
• Possibility to switch the appliance on or off manually (by pressing a button)
• Switching socket with weekly and daily switching cycle
• Simple operation
• 8 programmes in total
• IP44 protection
• Voltage / current: 230 VAC / 16 A max.
• Max. switching power: 3680 W
• Max. load current: 16 A
• Max. inductive load current (motors, etc.) 3 A
• Safety socket
• ON/OFF switch
• Operating temperature: - 10°C to 40°C
